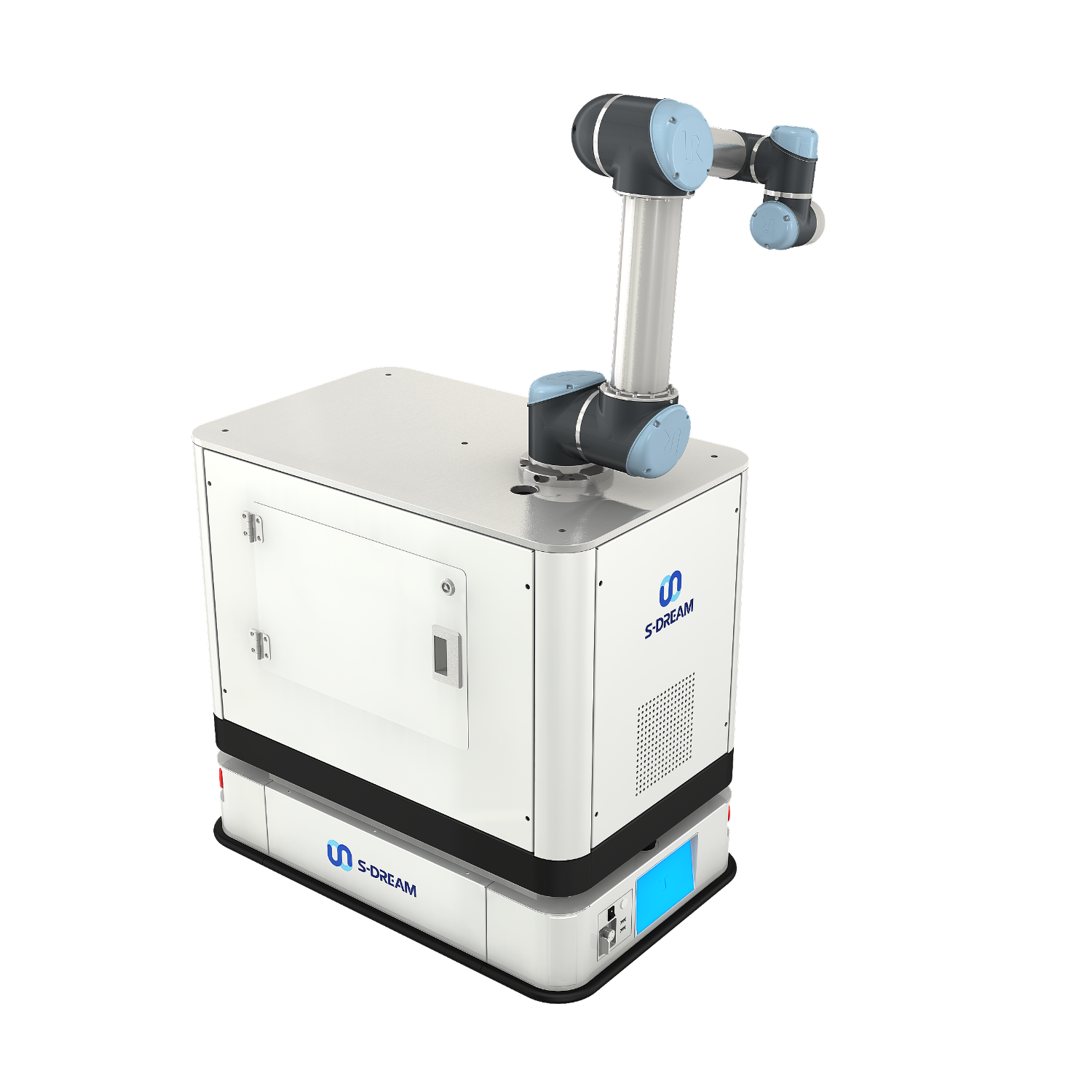

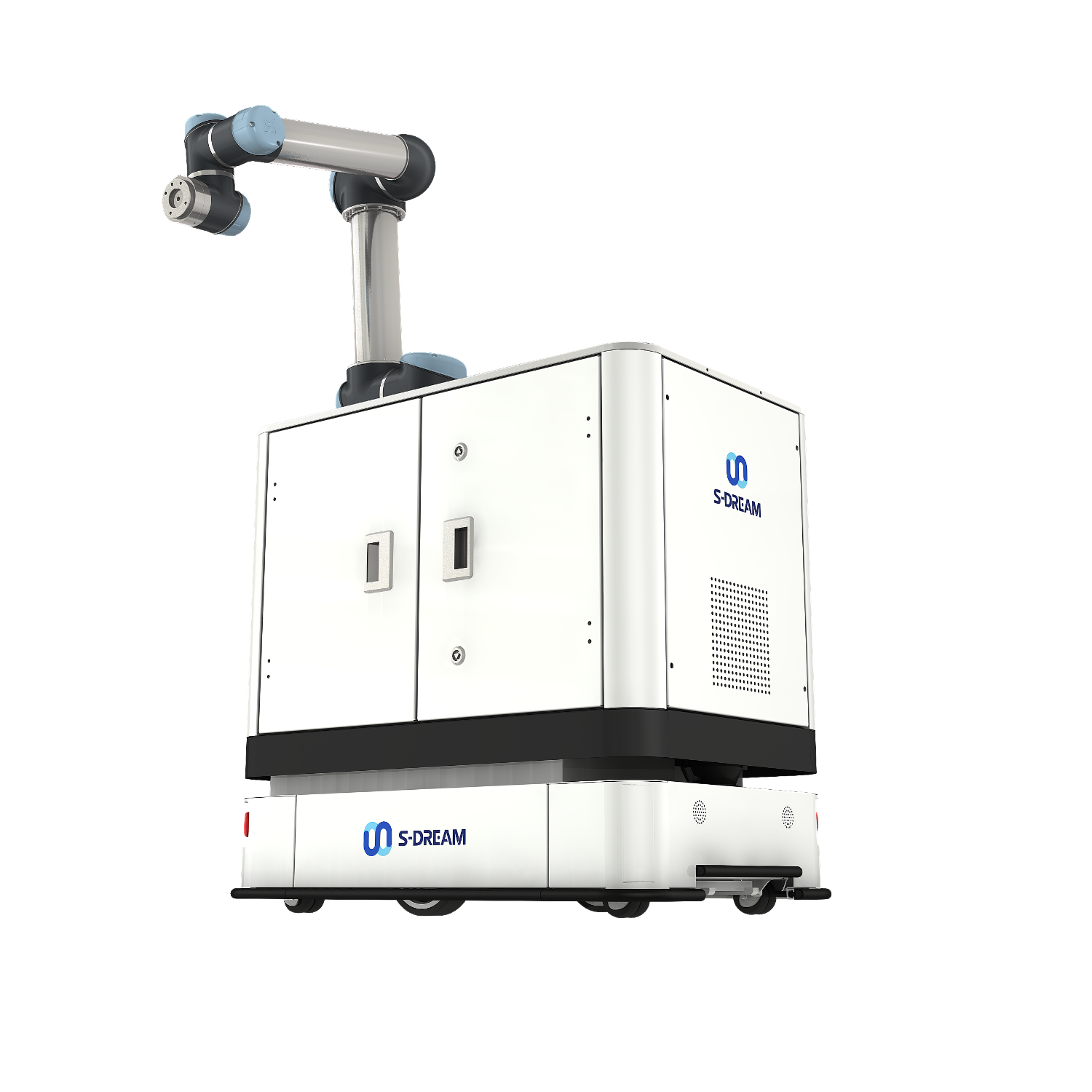

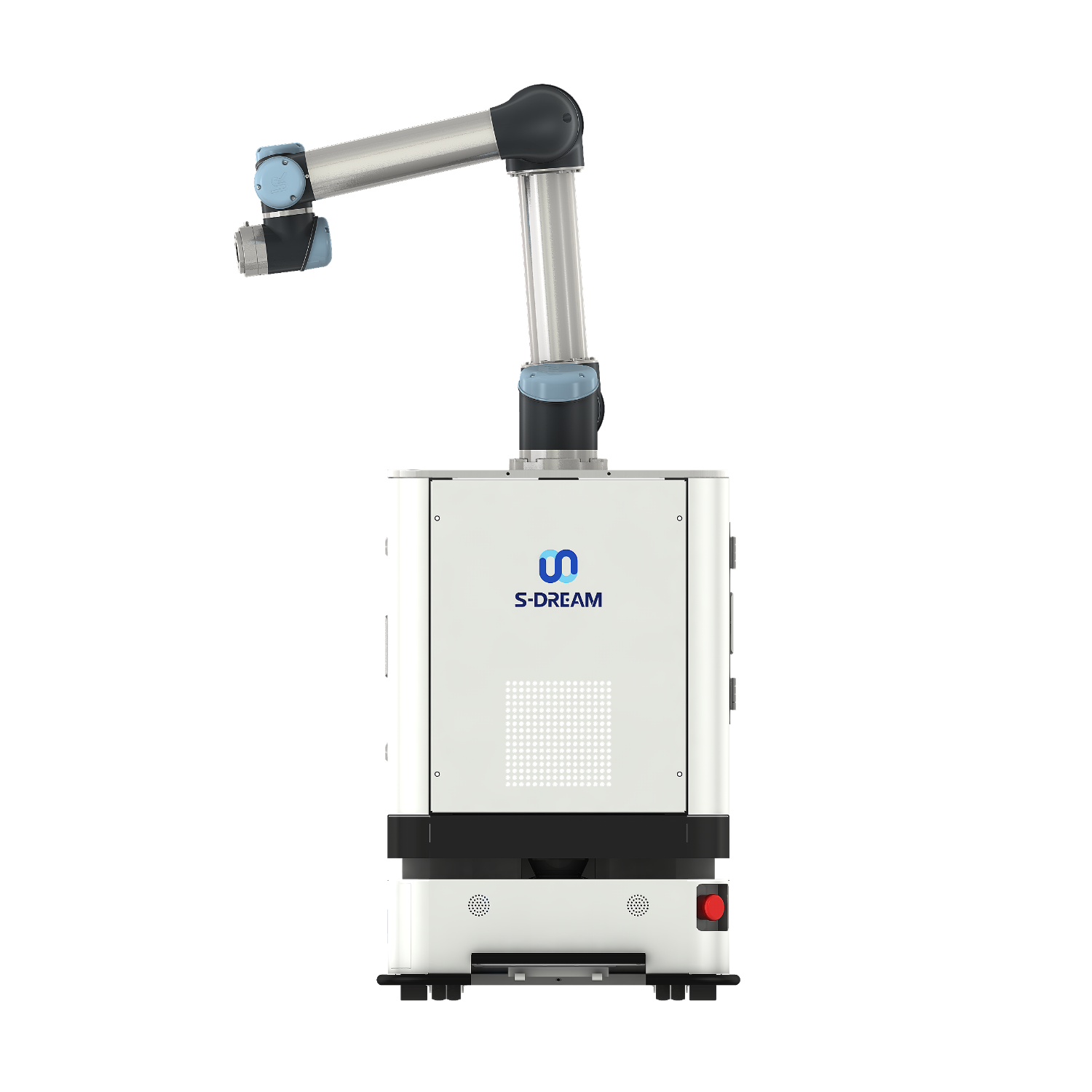

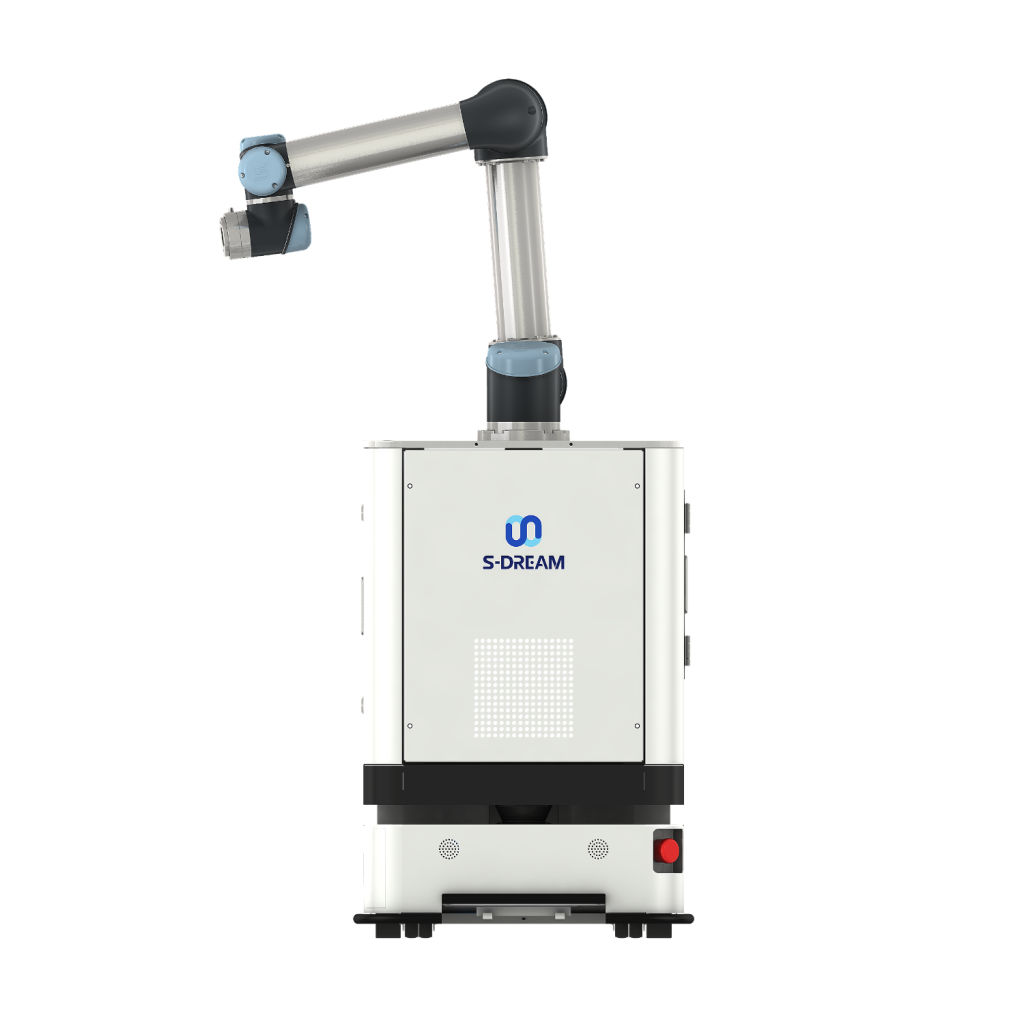

XR Spatial Positioning Test System
BR-1000
XR spatial positioning test system with sub-millimeter test benchmark; complete test cases covering multiple application scenarios
Core Advantages
01High-Precision Test Bench
Equipped with high-precision shaft to accurately simulate the real movement of the head of the XR headset wearer; test cases can be freely edited
02 Automated Evaluation
A wireless bionic robot test workstation is used to achieve automated evaluation and ensure test consistency; positioning data alignment and calculation result output can be automated
03 Multi-Dimensional Test Items
It includes five dimensions: positioning accuracy, positioning scale, stability, positioning robustness, and initialization quality; it has more than 20 test scenarios, which are close to the actual usage scenarios of head-mounted display users.
Specifications
Positioning the Camera | |
Resolution, Frame Rate | 2.2MP、360FPS–500+FPS |
Positioning Accuracy | +0.15mm |
Main specifications of the robot arm | |
Degrees of Freedom | 6-Axis, 360° Rotation |
Load | 5kg |
Movement Accuracy | 士0.03mm |
Mobile Platform Main Specifications | |
Running Speed | 1.5m/s(Max, Adjustable) |
Positioning Accuracy (Running/Docking) | ±1cm，±1° |
Navigation | Laser SLAM Navigation; Custom Cruise; Automatic Homing; |
Full Load Endurance | About 8h |
Charging Time | About 2h |
Charging Method | Manual/Automatic |
Communication | Wi-Fi, GigE |
