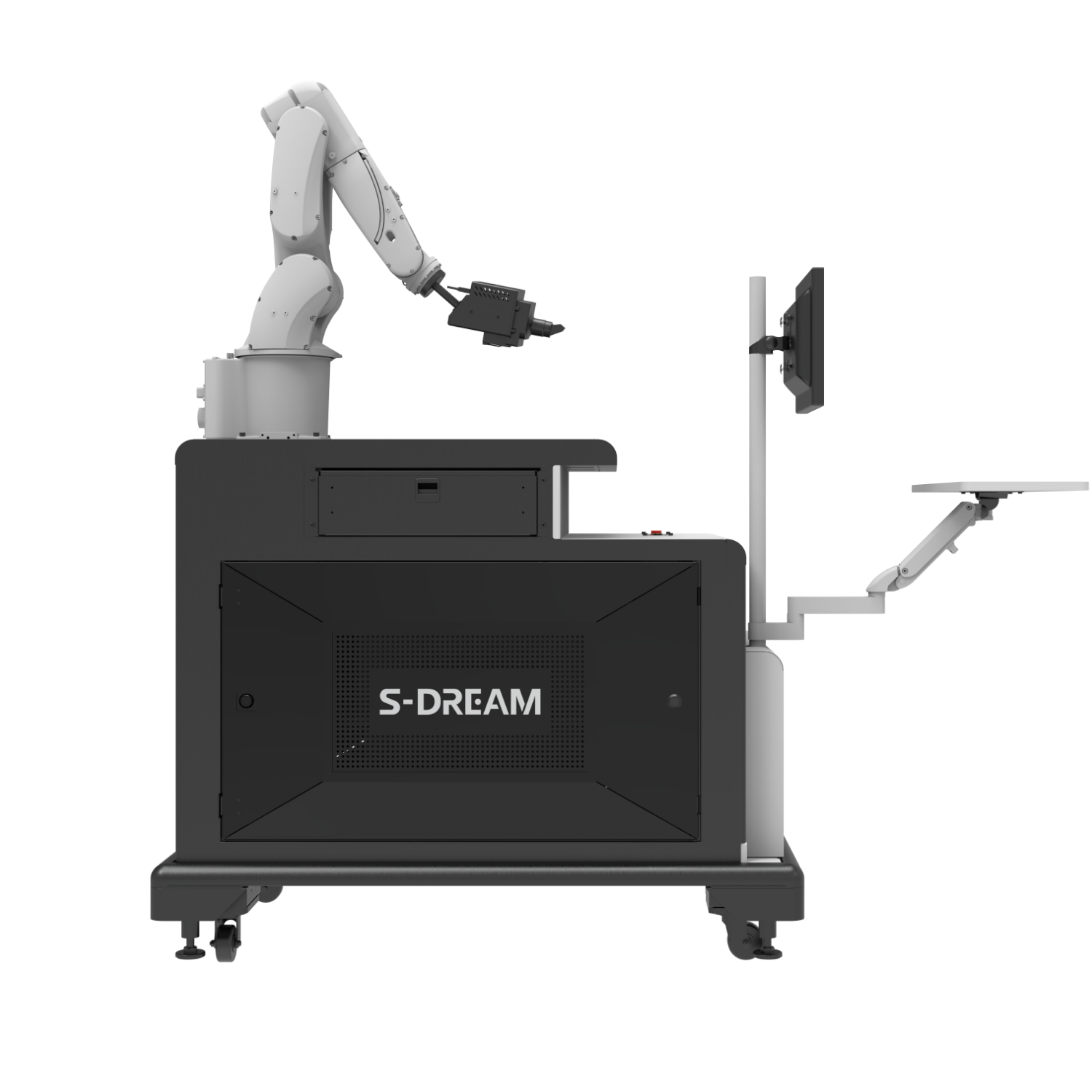

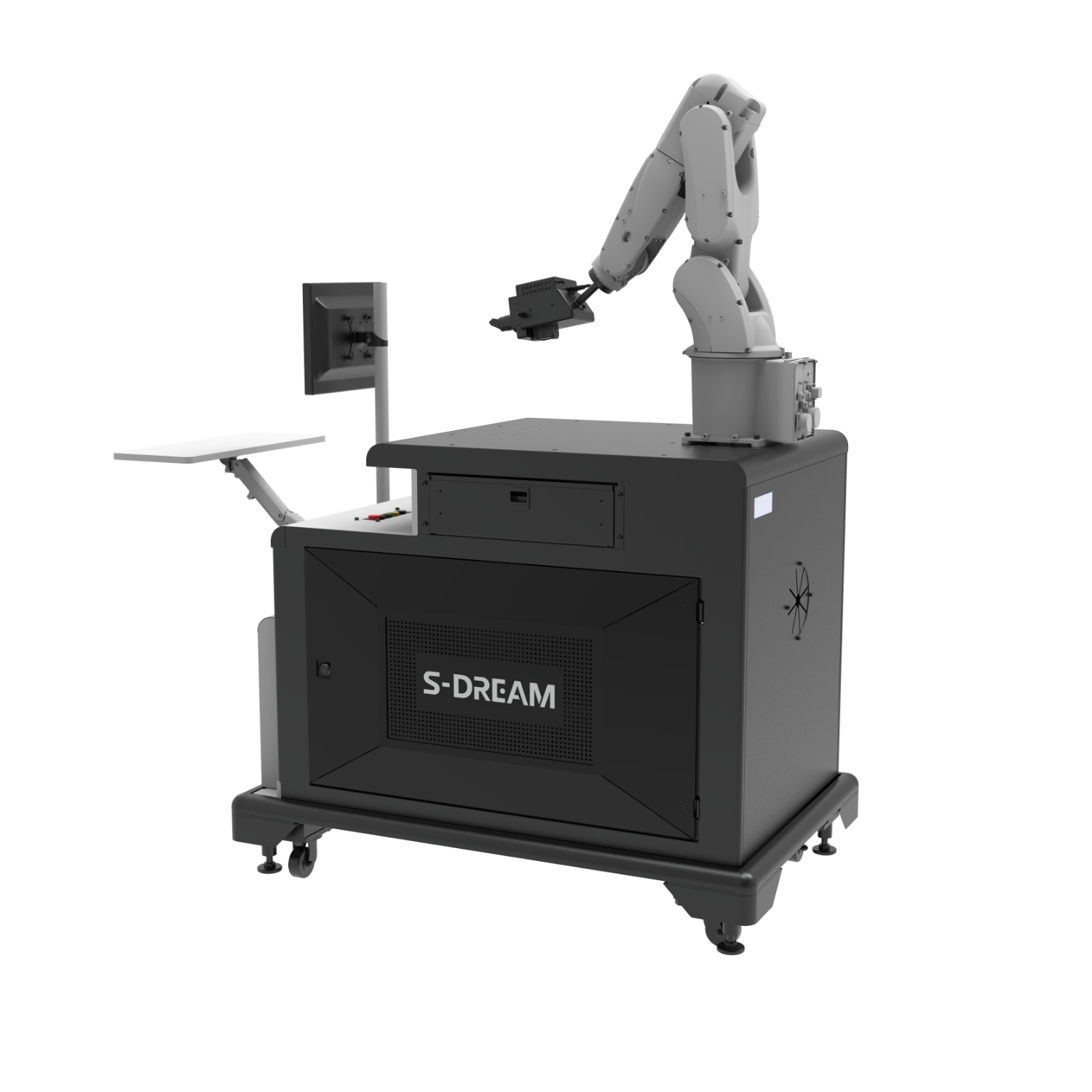

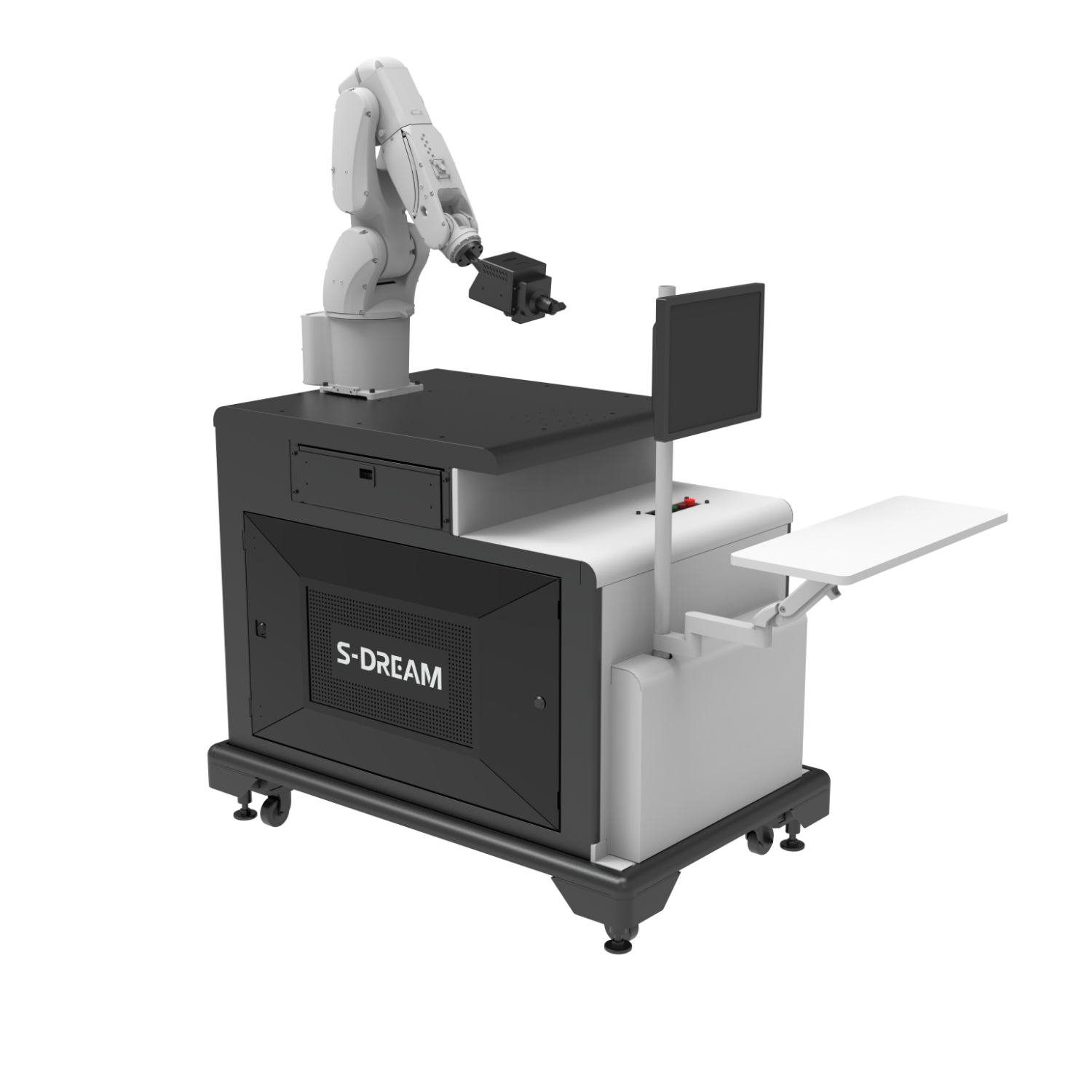

Point Scanning Near-Eye Display Detection System
SR-803
SR-803 is a near-eye display performance test system for laboratory testing scenarios, used for research and analysis of XR device display performance
Adopt Point Scanning Scheme
Scan point by point within the field of view of the device under test Rotate and scan around the center of the pupil or the center of the eyeball
Supporting Software
Automatic eye point positioning, automatic center alignment, automatic focus and other measurement auxiliary functions
More than 10 test items and test methods | Automatic HDMI/ADB projection function

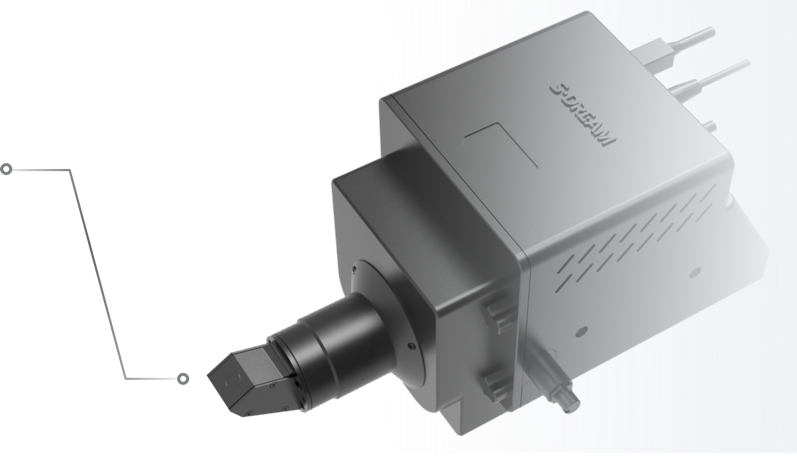

Spectroscopy and Imaging Two-In-One Probe
16°×12° detection field of view, PPD＞250
16°×12° detection field of view PPD＞250
With auto-focus function, it can provide the device under test screen preview and brightness and chromaticity measurement functions at the same time
Specifications
|
Core Device Specifications |
|
|
Imaging Detection Probe |
1200W CMOS Sensor, FOV: 16°×12° PPD > |
|
Industrial Computer |
Provide HMDI and TypeC display interfaces |
|
Spectrometer |
Brightness, Chromaticity and Spectrum Measurement, Brightness Measurement Accuracy ± 2%, Color Coordinate Accuracy (X, Y) ± |
|
Robotic Arm |
6Dof Motion Capability, Horizontal/Vertical Maximum Support 120°, Diagonal Maximum Support 100°, Repeat Positioning Accuracy ± |
|
Basic Specifications of the Whole Machine |
|
|
Rated Power |
2000W |
|
Equipment Size (W×D×H) |
1300mm×850mm×1700mm |
|
Weight |
250Kg |
