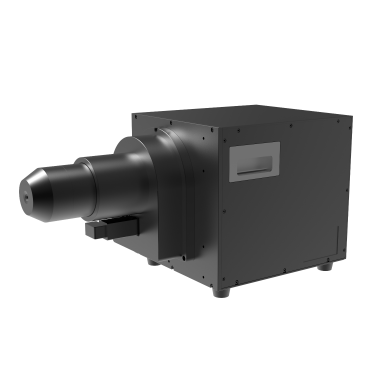

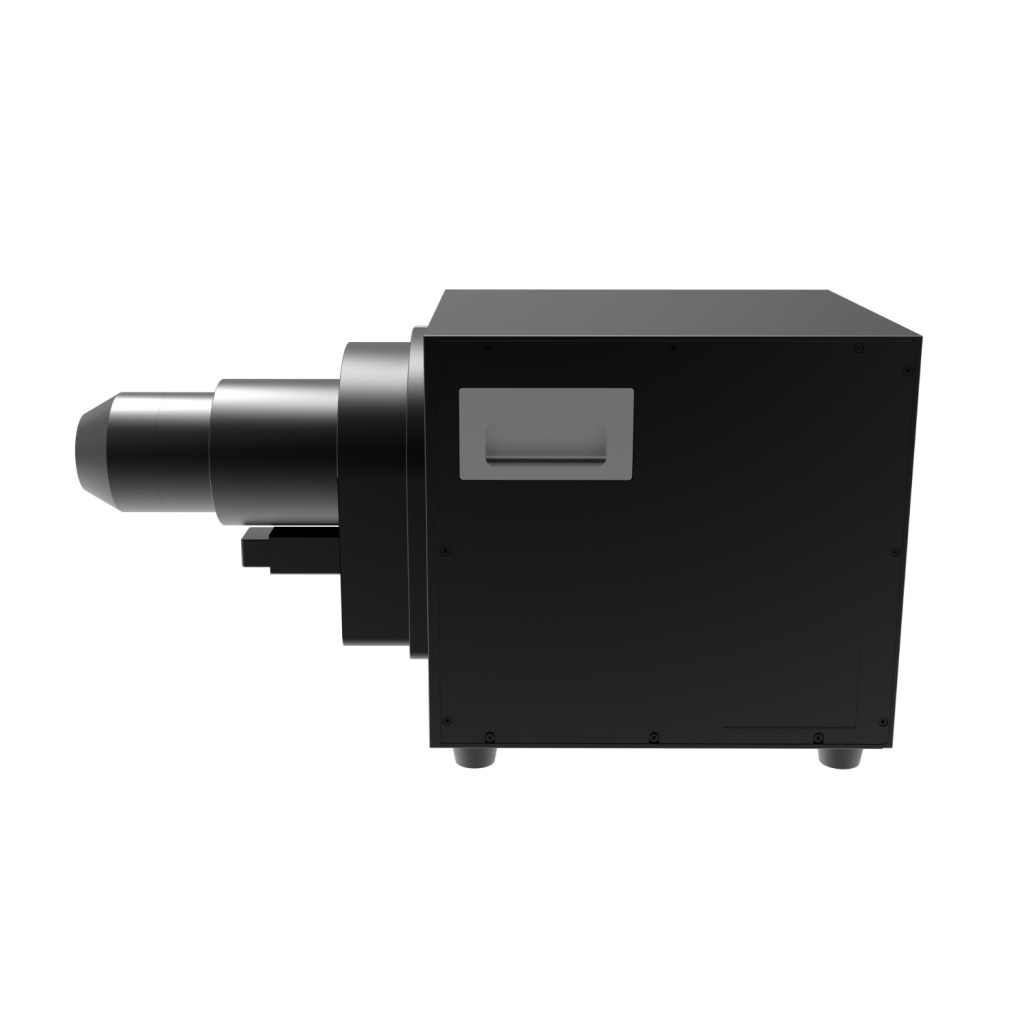

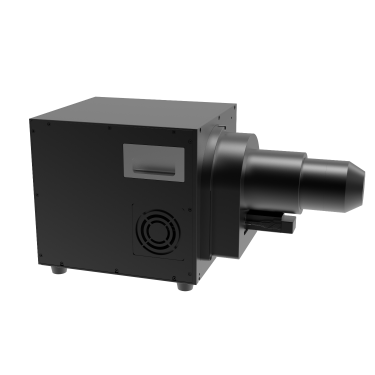

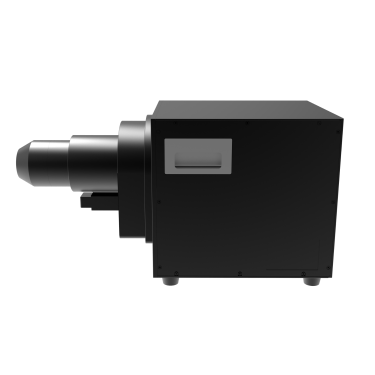

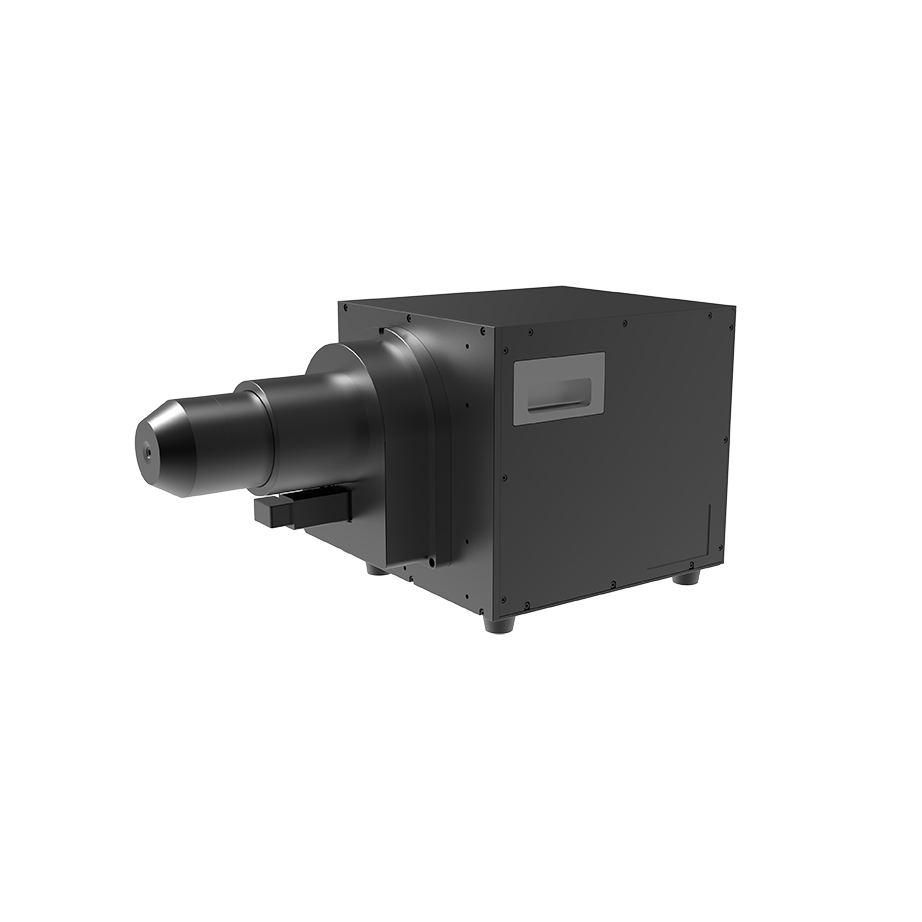

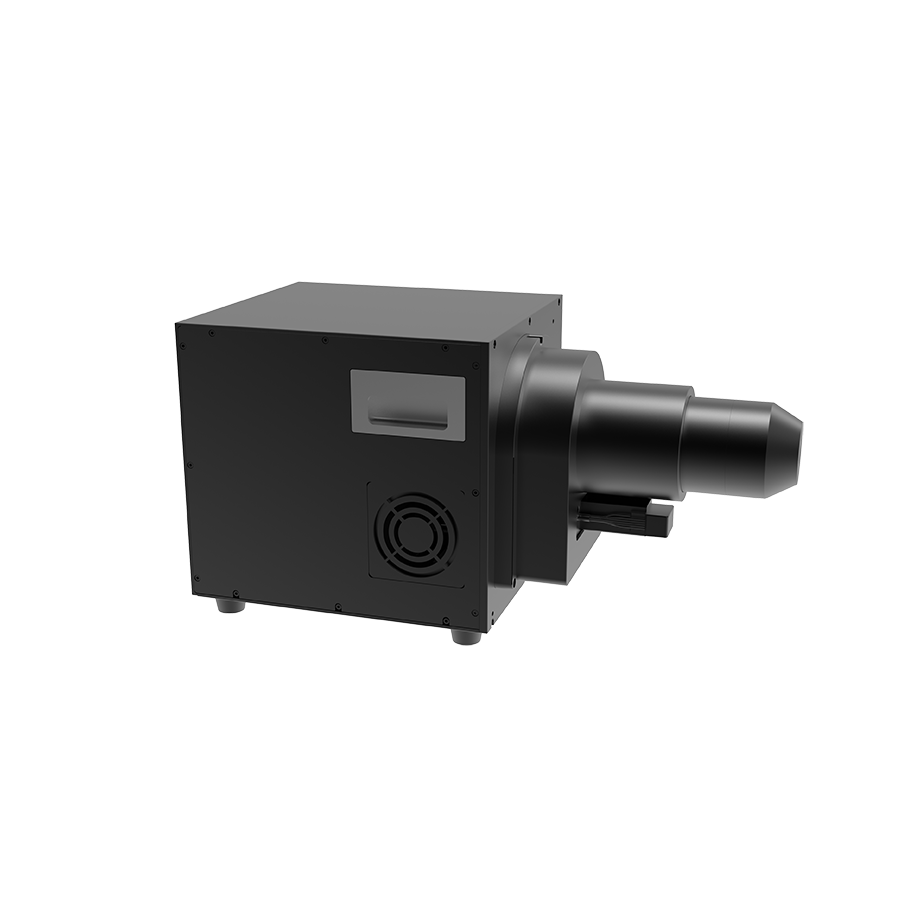

Imaging Near-Eye Display Detection System
SR-805
A near-eye display performance detection system for production line detection scenarios, used for research and analysis of AR/VR device display performance.
Core Advantages
01 Wide Field of View Lens
The diagonal field of view is greater than 140°, which can obtain the complete field of view image of the device under test
02Highly Automated Testing Process
The test points can be set arbitrarily and imported into the automated test process. It has more than 10 test items for optical performance detection and can realize automatic HDMI/ADB projection function.
03 Conveniently Adapt to Production Line Software
The detection interface is open, and the difficulty of production line deployment is low
Specifications
Core device Specifications | |
Imaging Detection Probe | Entrance Pupil Diameter 4mm, Diagonal Field of View Greater than 1409, Focus Range 0-4D |
Imaging Colorimeter | 31M/65M Resolution, Frame Rate ≥10FPS Brightness Measurement Accuracy ±2% Color Coordinate Accuracy (X, Y) ±0.003 |
Basic Specifications of the Whole Machine | |
Equipment Size (W×D×H) | 530mm×270mm×260mm |
Weight | 20kg |
